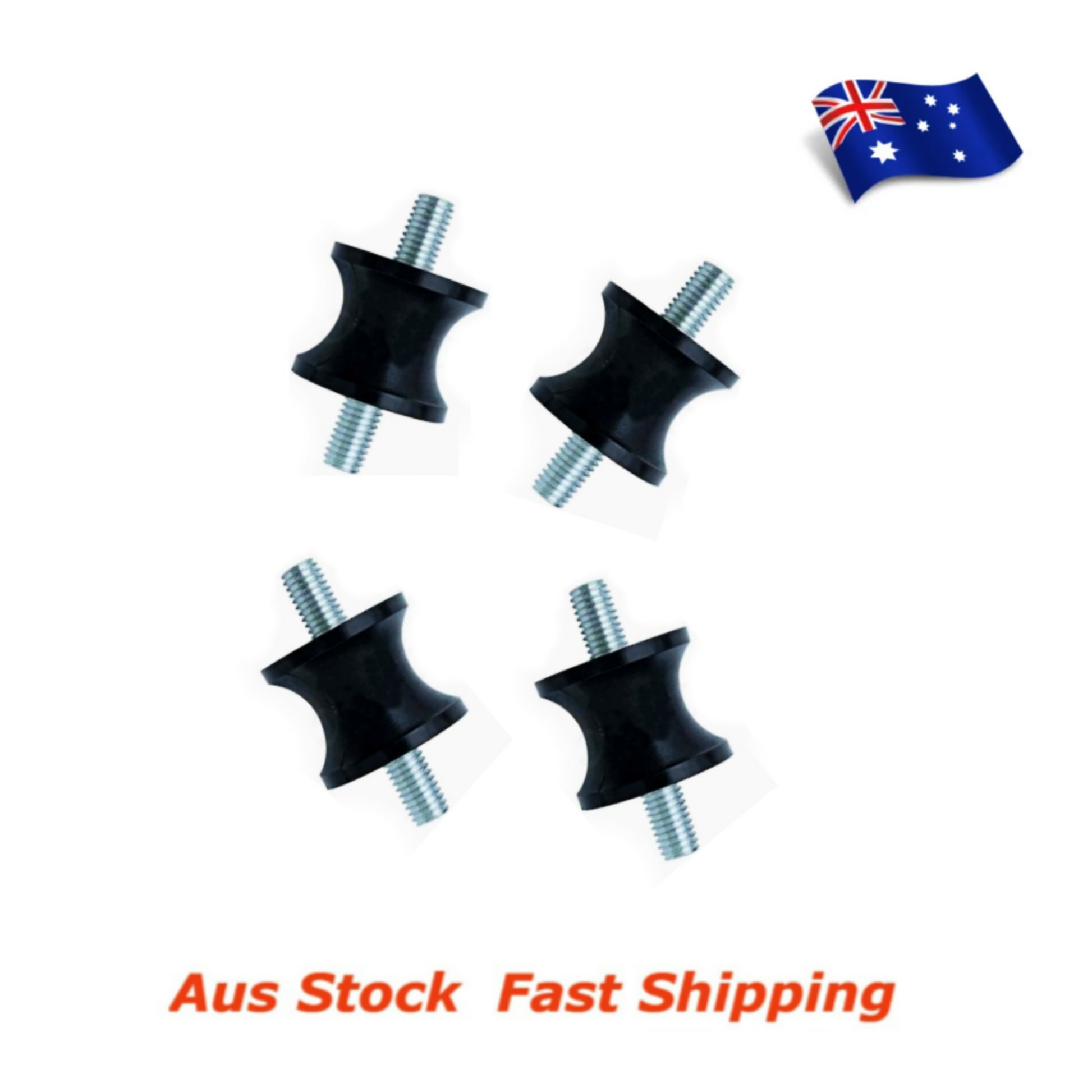

M4 Waisted Vibration Rubber Bobbin Mount 12x10mm Male Male MM

Durable M4 waisted vibration mount specially designed for isolating small sideways or shear loads. Ideal for small motors, small vibratory feeders and measuring apparatus

• Withstands sudden temp changes
• Waisted design offers low stiffness in sideways mode
• Suits sideways or shear loads
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 3.4kg

• D1: 10mm diam
• D2: 7mm diam
• H: 12mm height
• d: M4 thread
• L: pin length 10 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
