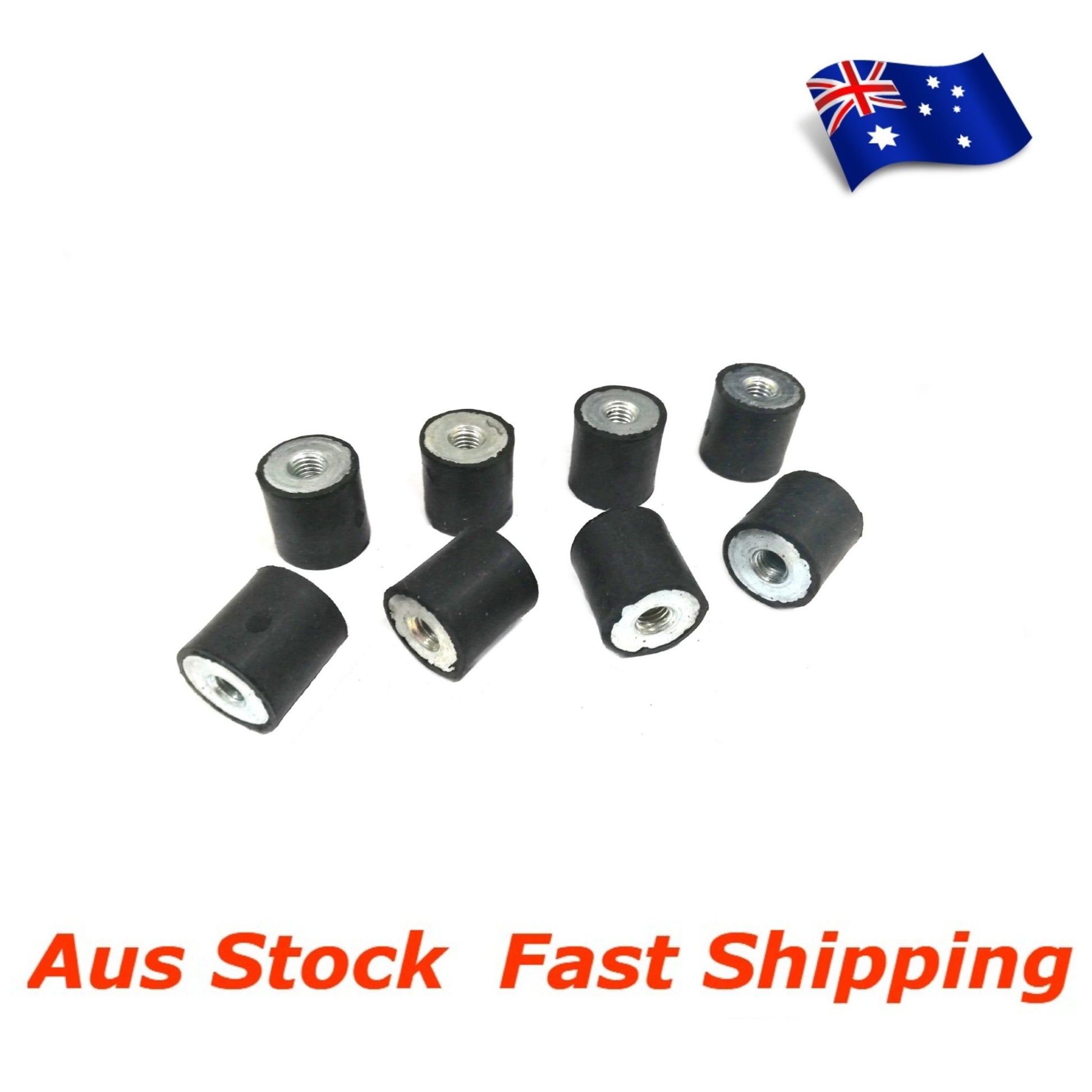

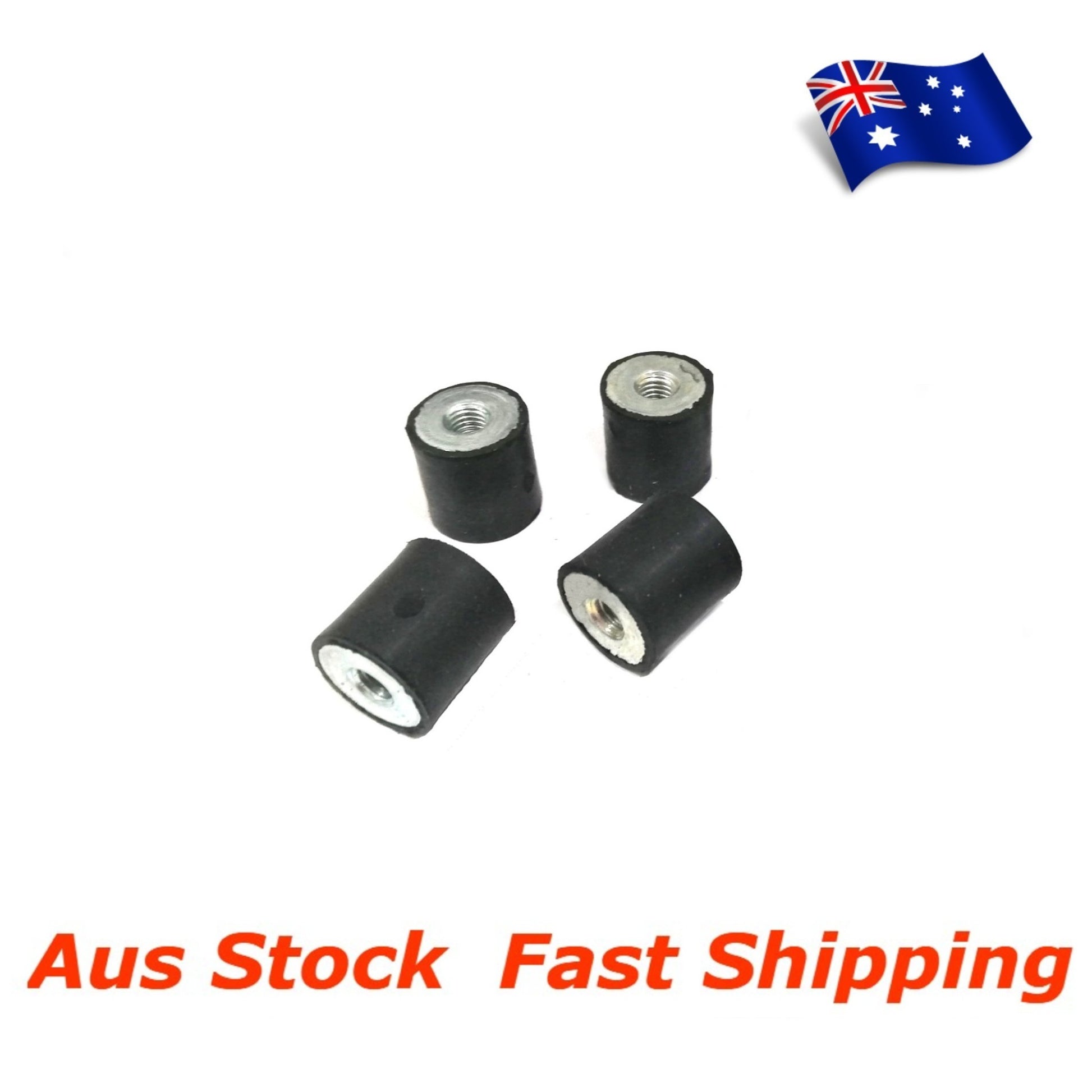

M3 Rubber Anti Vibration Rubber Bobbin Mount Female Female

Durable M3 vibration mount specially designed for isolating small components, drone camera's and small electronics

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 3kg

• D: 10mm diam
• H: 10mm height
• d: M3 thread
• L: insert 3mm appx

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
