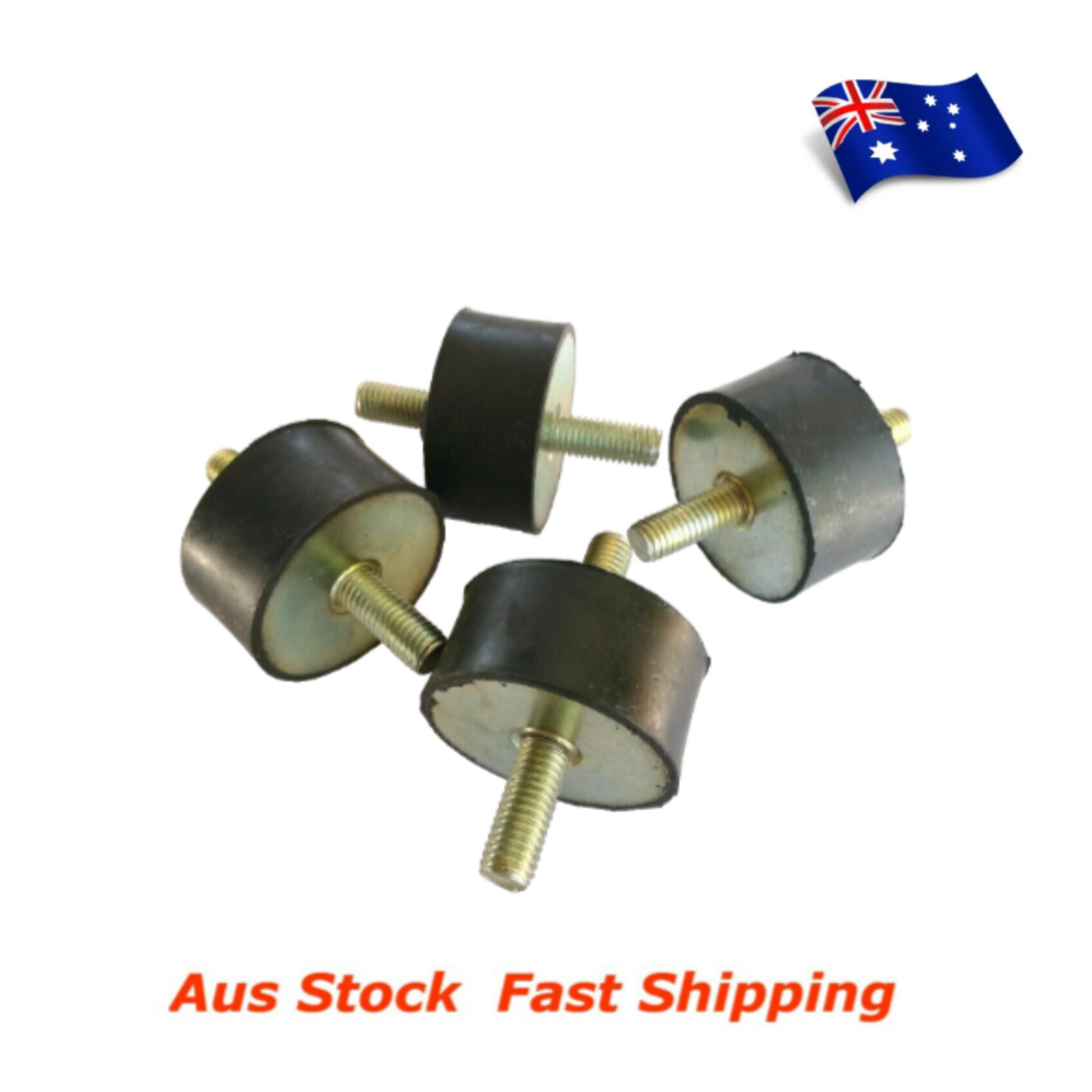

M10 Rubber Anti Vibration Rubber Bobbin Mounts 50x30mm Male Male MM

Durable M10 vibration mount specially designed for soundproofing and isolating pumps, motors, compressors and generators, light machinery

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 125kg

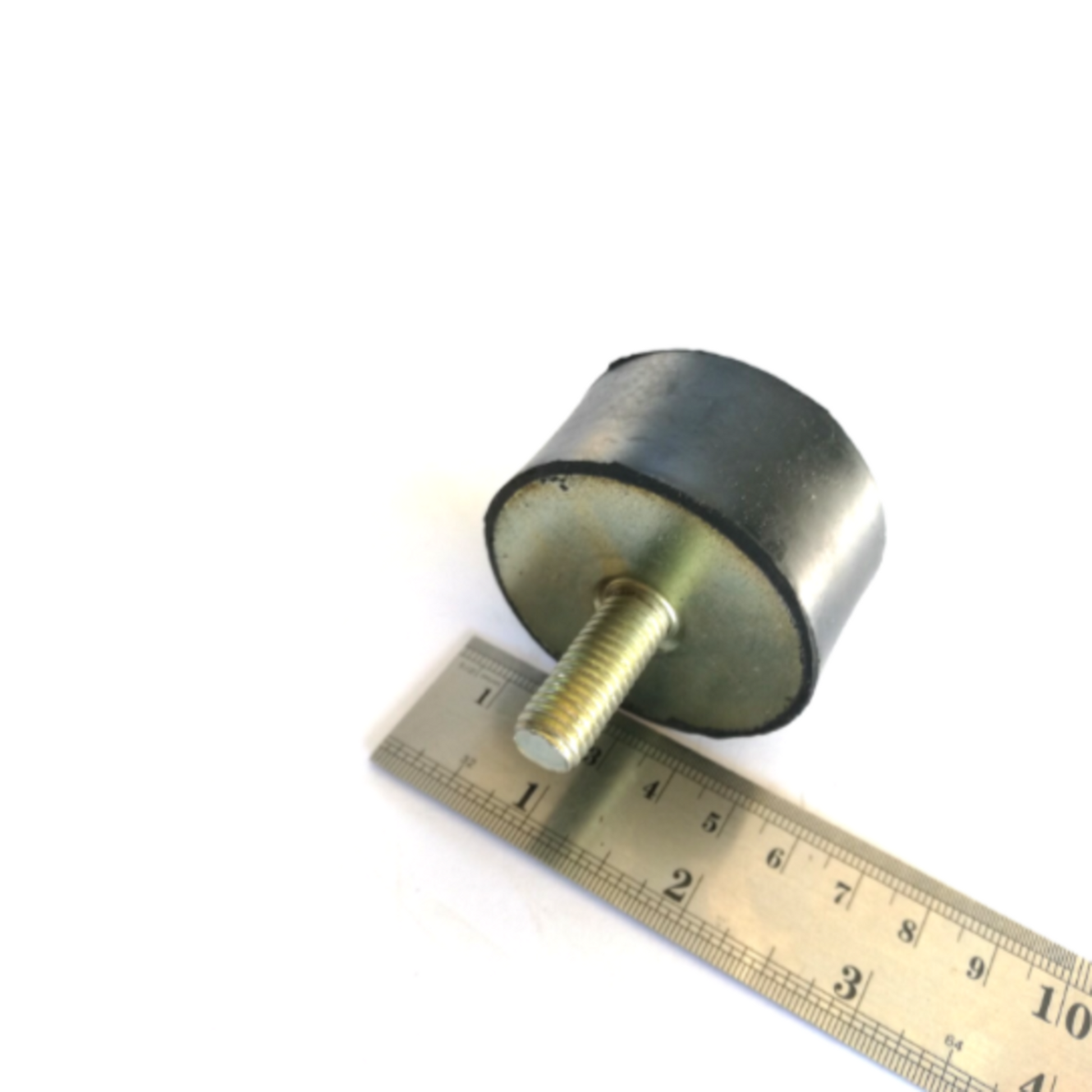

• D: 50mm diameter
• H: 30mm height
• d: M10 thread
• L: pin length 28 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
