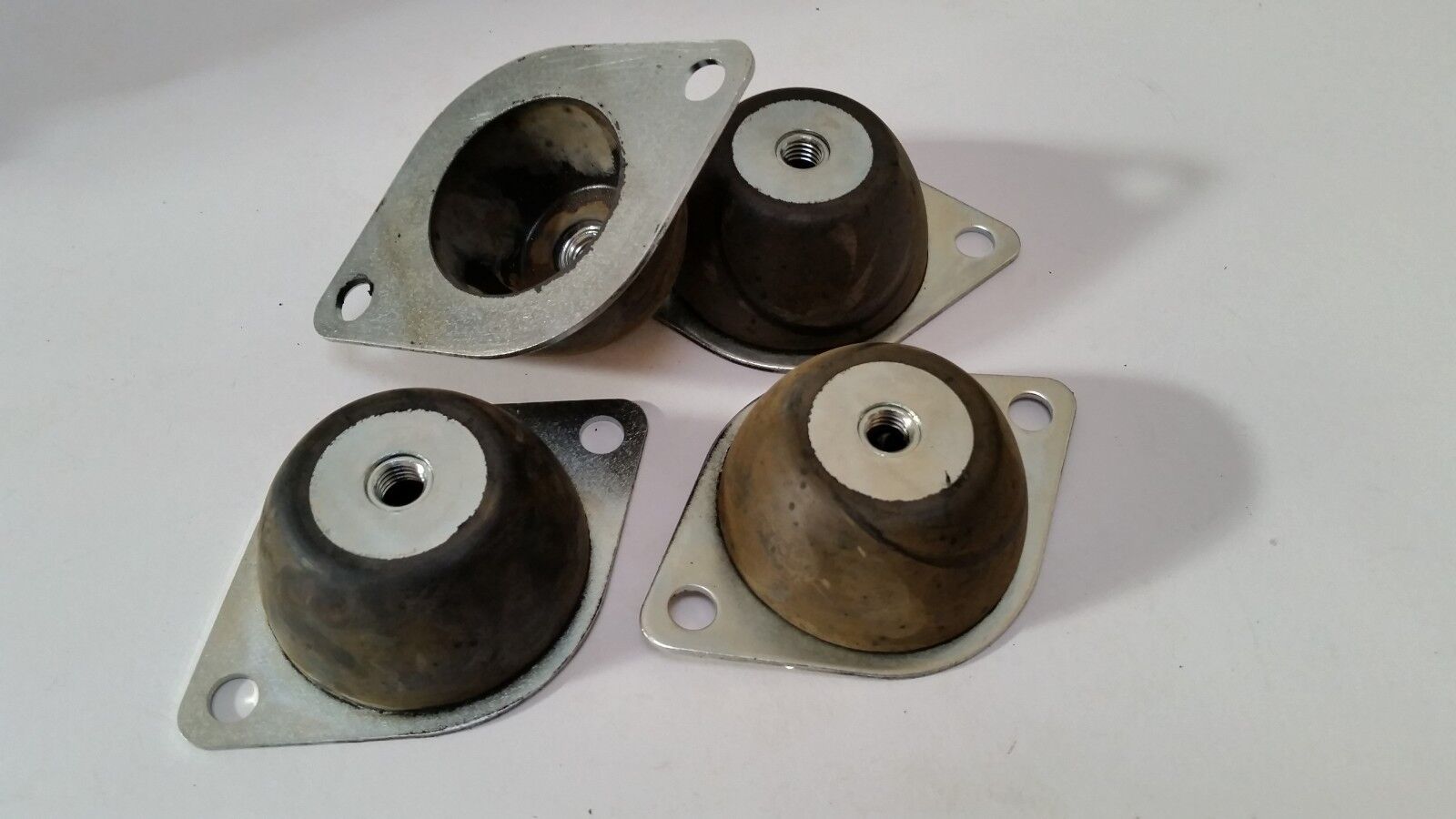

HVAC Anti Vibration Base Plate Mount M10 Insert Low Profile, specially designed for noise control. Durable high performance rubber parts made of extremely firm rubber High damping extremely firm rubber mount. Durable for heavy HVAC Generator Pump units Easy fixing with 2 X base mounting holes
Large flanged base for stability
What's in the box: 1 X rubber mount
Extremely durable high performance rubber parts made of extremely firm rubber
With M10 top hole and two mounting holes on base for stable fixing.
Very heavy duty suits high loads.

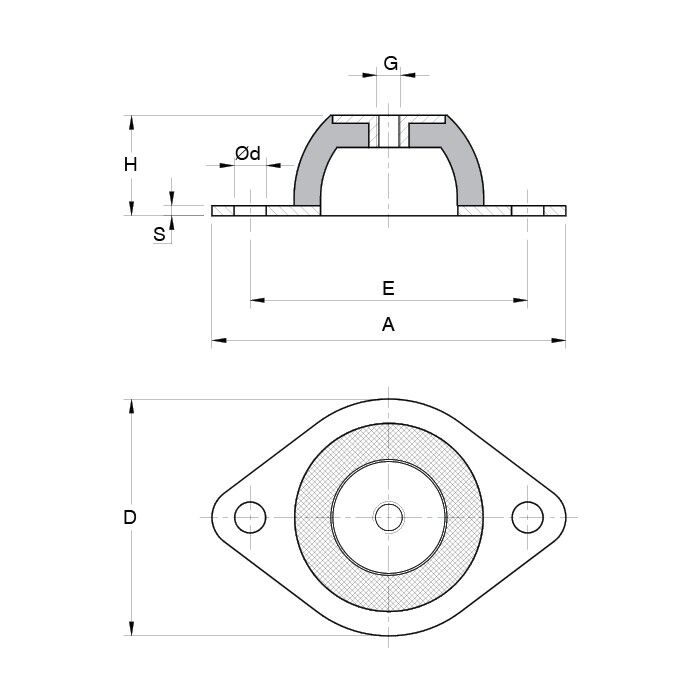

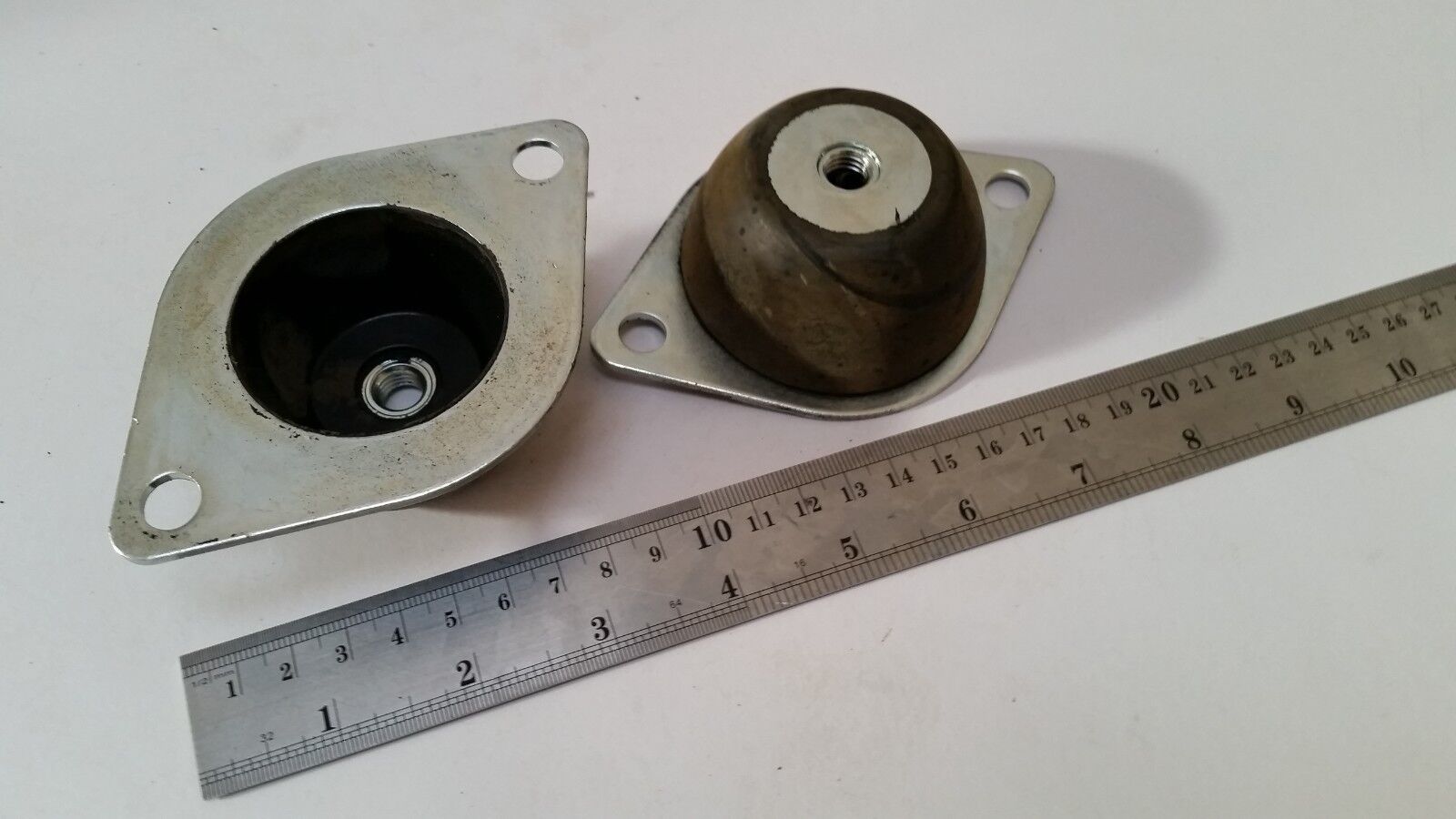

A: Base length 115mm
Rubber diameter at narrowest point 45mm
D: Base width 76mm
E: Distance between mounting holes 92mm ( measuring distance between centre of each hole)
G: Top hole insert M10 thread
H: Overall height of rubber and metal plate 35mm
S: Metal base thickness 2mm
Mounting hole diameters 10mm
Please note: All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
